FES10
Features:
- 12v & 24v DC dual voltage continuously rated coil
- Simple fail safe/fail secure interchange, no loose pins
- Weather resistant
- Pre drilled for extension lips
- Superior holding strength
- 4 hour fire rated
- 12volt DC = 200mA
24vikt DC = 100mA - Mounting kit included
-
FES20
Features:
- 12v & 24v DC dual voltage continuously rated coil
- Full monitored including “strike securely installed within door frame” (anti-tamper)
- Simple fail safe/fail secure interchange, no loose pins
- Pre drilled for extension lips
- Superior holding strength
- 4 hour fire rated
- 12volt DC = 200mA
24vikt DC = 100mA - Mounting kit included
-
Gateman Gold Locks
Ergonomic Design
Zinc die-casting handle is ergonomically designed for the user’s convenience along with a pleasant touch. -
-
Gateman Silver Locks
Dual Access
You can open the door using a Floating ID key or a password at your convenience.
Keypad Cover
Keypad cover helps prevent password leakage and impede burglar’s attempt.
Durable Keypad
The keypad is made of high-strength material not easily being worn out or stained. -
-
Smart Locks
Proximity Card Type
It is not necessary to press a button to unlock the door. If you get your smart card close to the card reader on the front body it unlock the lock. -
-
VGSE Electric Bolt – ML200
Specification:
- Fail safe type
- Initial current 0.9A
- Stand-by current 0.3A
- Cover plate (210mmL x 42mmW x 0.8mmD)
- Face plate (200mmL x 34mmW x 3mmD)
- Strike: Mortise (98mmL x 24mmW x 27mmD)
- Bolt: 15.5 DIA. Stainless steel, 17mm throw
-
VGSE Electro-magnetic Locks – MLS
Specification:
- Armature size (160mmL x 36mmW x 11mmD)
- Lock size (228mmL x 38mmW x 27mmD)
- Holding force 250KGS
- Unit weight (Approx.) 2KGS
- Nominal voltage 12VDC or 24VDC
- Nominal current 12V/480mmA or 24V/240mA
- Voltage tolerance±10%
- Nominal power (About 6.0W)
- Contact (REED SW.) Rating 0.5A 30VDC/AC
- Timer 0-90 Sec
Features:
- Built in voltage spike suppressor
- Narrow mounting design
-
Viva Locks
Patented Encryption Technology
Semi-conductor Floating ID key has unique 281 trillion individual IDs and 42 billion Floating IDs. It opens the lock by the codes previously assigned at the last touch, and floating ID keeps changing whenever user’s touch on and off. The system verifies the existing code, generates random digit algorithm and saves the last random code when the key touch off from the lock. This Floating ID system makes key duplication unavailable any more. -
-
AIRTIGHT / HERMETIC SERIES
MasterMatic A-2 Automatic Sliding Door (Airtight/Hermetic) Operator:The MasterMatic A-2 Automatic Sliding Door (Airtight) Operator is mainly used for sensitive clean rooms that have airtight requirements. hospitals, cleaning rooms, laboratories, surgical facilities, intensive care rooms, x-ray rooms and other purification room facilities.
SPECIFICATION:
TYPE MasterMatic A-2 Automatic Sliding Door (Airtight) Operator DOOR WEIGHT 200kg X1 (DOOR) DOOR WIDTH 500mm-3000mm INSTALL WAY SURFACE INSTALL MOTOR DC24V 120W BRUSHLESS DC MOTOR CONTROL STANDARD MICRO-CONTROL POWER CONSUMPTION 120W VOLTAGE AC100v-240V ENVIRONMENTAL TEMPERATURE ~20°C~+50°C VOLUME 60 DECIBEL(MAX.) STARTING SPEED 480mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION RACK BELT S8M OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) PFC POWER EFFICIENCY 0.95(IN AC100V FULL LOAD) TRACTION FORCE 3.5KG Special Features:
- PFC Device (Power Factor Correction)
- Catch-return safety system: During the door motion if there is a person or object blocking the travel line, the door will return.
- Wide range of AC Voltage input (AC100-240V)
- Power saving, quietest, versatile, resistant high heat and cold.
- Safety certificate: URS ISO 9001
- Excellent quality & high-performance
BROCHURE – MasterMatic A-2 Automatic Sliding Door (Airtight) Operator -

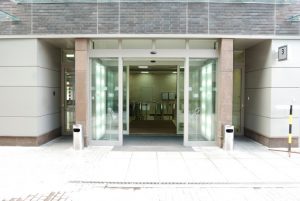

AUTOMATIC SLIDING DOORS – SINGLE / BI-PARTING SERIES
MasterMatic Single / Bi-Parting series are well suited for conventional automation needs. These include our most popular model MasterMatic TH-3 which has the versatility to meet everyday automation needs. All models are capable of being fitted with a wide range of control, security and safety features. You’ll experience the unmatched performance of our TH-3 Automatic Sliding Door Operator in many commercial buildings including offices, government buildings, or public buildings.
Special Features:
- PFC Device (Power Factor Correction)
- Catch-return safety system: During the door motion if there is a person or object blocking the travel line, the door will return.
- Wide range of AC Voltage input (AC100-240V)
- Power saving, quietest, versatile, resistant high heat and cold.
- Safety certificate: URS ISO 9001
- Excellent quality & high-performance
MasterMatic TH-3 Automatic Sliding Door Operator – SPECIFICATION:
TYPE MasterMatic TH-3 Automatic Sliding Door Operator MODEL SINGLE-WINGED BI-PARTING DOOR WEIGHT 150kg X1 (DOOR) 130kg X2(DOOR) DOOR WIDTH 500mm-2500mm 500mm-2500mm INSTALL WAY SURFACE INSTALL SURFACE INSTALL MOTOR DC24V 75W BRUSHLESS DC MOTOR CONTROL STANDARD MICRO-CONTROL POWER CONSUMPTION 75W VOLTAGE AC100V-240V ENVIRONMENTAL TEMPERATURE ~20°C~+50°C VOLUME 60 DECIBEL(MAX.) STARTING SPEED 600mm/SEC. 550mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION RACK BELT S8M OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) PFC POWER EFFICIENCY 0.95(IN AC100V FULL LOAD) TRACTION FORCE 3KG BROCHURE – MasterMatic TH-3 Automatic Sliding Door (SINGLE / Bi-Parting)MasterMatic AD-3 Automatic Sliding Door Operator:
TYPE MasterMatic AD-3 Automatic Sliding Door Operator MODEL SINGLE-WINGED BI-PARTING DOOR WEIGHT 150kg X1 (DOOR) 130kg X2(DOOR) DOOR WIDTH 500mm-2500mm 500mm-2500mm INSTALL WAY SURFACE INSTALL SURFACE INSTALL MOTOR DC24V 75W WORM GEAR MOTOR CONTROL STANDARD MICRO-CONTROL POWER CONSUMPTION 75W VOLTAGE AC100V-240V ENVIRONMENTAL TEMPERATURE ~20°C~+50°C VOLUME 60 DECIBEL(MAX.) STARTING SPEED 600mm/SEC. 550mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION RACK BELT S8M OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) PFC POWER EFFICIENCY 0.95(IN AC100V FULL LOAD) TRACTION FORCE 3.5KG BROCHURE – MasterMatic AD-3 Sliding Door OperatorMasterMatic K-2 Automatic Sliding Door Operator:
TYPE MasterMatic K-2 Automatic Sliding Door Operator MODEL SINGLE-WINGED Bi-PARTING DOOR WEIGHT 120kg X1 (DOOR) 1000kg X2(DOOR) DOOR WIDTH 500mm-2500mm 500mm-2500mm INSTALL WAY SURFACE INSTALL SURFACE INSTALL MOTOR DC24V 75W WORM GEAR MOTOR CONTROL MICRO-CONTROL POWER CONSUMPTION 75W VOLTAGE AC100v-240V ENVIRONMENTAL TEMPERATURE ~20°C~+50°C VOLUME 60 DECIBEL(MAX.) STARTING SPEED 200~550mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION RACK BELT S8M OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) TRACTION FORCE 3KG -
CURVED SERIES
MasterMatic Curved series represents a real innovation in the field of automatic systems with curved sliding door leaves. Indeed the basic design philosophy is inspired by the possibility of being able to create “ad hoc” doors, with radii of curvature suitable to achieve total architectural integration. By combining the various types of automatic systems it is possible to obtain numerous configurations, capable of satisfying all transit requirements whilst always guaranteeing the entrance highly prestigious touches.
MasterMatic TH-R9 Automatic Sliding Door Operator (Curved) – SPECIFICATION:
TYPE MasterMatic TH-R9 Automatic Sliding Door Operator (Curved) MODEL SINGLE-WINGED BI-PARTING DOOR WEIGHT 120kg X1 (DOOR) 100kg X2(DOOR) DOOR WIDTH 500mm-2500mm 500mm-2500mm INSTALL WAY SURFACE INSTALL SURFACE INSTALL MOTOR DC24V 180W BRUSHLESS DC MOTOR CONTROL STANDARD MICRO-CONTROL POWER CONSUMPTION 75W VOLTAGE AC100v-240V ENVIRONMENTAL TEMPERATURE ~20°C~+50°C VOLUME 60 DECIBEL(MAX.) STARTING SPEED 600mm/SEC. 550mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION RACK BELT S8M OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) PFC POWER EFFICIENCY 0.95(IN AC100V FULL LOAD) TRACTION FORCE 4.5kg MasterMatic AD-R9 Automatic Sliding Door Operator (Curved) – SPECIFICATION:
TYPE MasterMatic AD-R9 Automatic Sliding Door Operator (Curved) MODEL SINGLE-WINGED BI-PARTING DOOR WEIGHT 120kg X1 (DOOR) 100kg X2(DOOR) DOOR WIDTH 500mm-2500mm 500mm-2500mm INSTALL WAY SURFACE INSTALL SURFACE INSTALL MOTOR DC24V 75W WORM GEAR MOTOR CONTROL STANDARD MICRO-CONTROL POWER CONSUMPTION 75W VOLTAGE AC100v-240V ENVIRONMENTAL TEMPERATURE ~20°C~+50°C VOLUME 60 DECIBEL(MAX.) STARTING SPEED 600mm/SEC. 550mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION RACK BELT S8M OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) PFC POWER EFFICIENCY 0.95(IN AC100V FULL LOAD) TRACTION FORCE 4.5kg MasterMatic TH-RH5 Automatic Sliding Door Operator (Curved) – SPECIFICATION:
TYPE MasterMatic TH-RH5 Automatic Sliding Door Operator (Curved) MODEL SINGLE-WINGED BI-PARTING DOOR WEIGHT 250kg X1 (DOOR) 250kg X2(DOOR) DOOR WIDTH 500mm-3000mm 500mm-3000mm INSTALL WAY SURFACE INSTALL SURFACE INSTALL MOTOR DC24V 120W BRUSHLESS DC MOTOR CONTROL STANDARD MICRO-CONTROL POWER CONSUMPTION 120W VOLTAGE AC100v-240V ENVIRONMENTAL TEMPERATURE ~20°C~+50°C VOLUME 60 DECIBEL(MAX.) STARTING SPEED 600mm/SEC. 550mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION ROLLER CHAIN 40-1R OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) PFC POWER EFFICIENCY 0.95(IN AC100V FULL LOAD) TRACTION FORCE 6.5kg BROCHURE – MasterMatic TH-R9 / AD-R9 / TH-RH5 Automatic Sliding Door (Curved) Operators -
-
HEAVY DUTY SERIES
The MasterMatic Heavy Duty series represents the most developed product available on the market concerning automatic systems for sliding doors with continuous duty. These are particularly designed and built for high security needs and support doors up starting from 500kg (Single) or 400kgx2 (Bi-parting) up to 1000kg (Single) or 900kg (Bi-Parting) . It is ideal for factories, hospitals, airports, military bases, and other high security areas to be protected.
MasterMatic H-8 Automatic Sliding Door (Heavy Duty) Operator:
H-8 SPECIFICATION:
TYPE MasterMatic H-8 Automatic Sliding Door Operator (Heavy Duty) MODEL SINGLE-WINGED BI-PARTING DOOR WEIGHT 500kg X1 (DOOR) 400kg X2(DOOR) DOOR WIDTH 500mm-6000mm 500mm-6000mm INSTALL WAY SURFACE INSTALL SURFACE INSTALL MOTOR DC24V 120W BRUSHLESS DC MOTOR CONTROL STANDARD MICRO-CONTROL POWER CONSUMPTION 120W VOLTAGE AC100v-240V ENVIRONMENTAL TEMPERATURE 20°C~+50°C VOLUME 60 DECIBEL(MAX.) STARTING SPEED 300mm/SEC. 250mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION RACK BELT S8M OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) PFC POWER EFFICIENCY 0.95(IN AC100V FULL LOAD) TRACTION FORCE WHEN POWER OFF THE DOOR CAN BE OPENED MANUALLY Special Features:
- PFC Device (Power Factor Correction)
- Catch-return safety system: During the door motion if there is a person or object blocking the travel line, the door will return.
- Wide range of AC Voltage input (AC100-240V)
- Heavy Duty, Quite, Resistant to high heat and cold.
- Safety certificate: URS ISO 9001
- Designed for High Security purposes
BROCHURE – MasterMatic H-8 Automatic Sliding Door (Heavy Duty) OperatorMasterMatic H-18 Automatic Sliding Door (Heavy Duty) Operator:
H-18 SPECIFICATION:
TYPE MasterMatic H-18 Automatic Sliding Door Operator (Heavy Duty) MODEL SINGLE-WINGED BI-PARTING DOOR WEIGHT 1000kg X1 (DOOR) 900kg X2(DOOR) DOOR WIDTH 500mm-6000mm 500mm-6000mm INSTALL WAY SURFACE INSTALL SURFACE INSTALL MOTOR DC24V 180W BRUSHLESS DC MOTOR CONTROL STANDARD MICRO-CONTROL POWER CONSUMPTION 180W VOLTAGE AC100v-240V ENVIRONMENTAL TEMPERATURE 20°C~+50°C VOLUME 65 DECIBEL(MAX.) STARTING SPEED 300mm/SEC. 250mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION ROLLER CHAIN 40-1R OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) PFC POWER EFFICIENCY 0.95(IN AC100V FULL LOAD) TRACTION FORCE WHEN POWER OFF THE DOOR CAN BE OPENED MANUALLY Special Features:
- PFC Device (Power Factor Correction)
- Catch-return safety system: During the door motion if there is a person or object blocking the travel line, the door will return.
- Wide range of AC Voltage input (AC100-240V)
- Heavy Duty, robust, resistant to high heat and cold.
- Safety certificate: URS ISO 9001
- Designed for High Security purposes
BROCHURE – MasterMatic H-18 Automatic Sliding Door (Heavy Duty) Operator -
SUPER HEAVY DUTY SERIES
The MasterMatic Super Heavy Duty series are designed and built for heavy doors starting from 2000kg (Single) or 1500kg x 2 (Bi-parting) up to 10,000kg (Single) or 8000kg x 2 (Bi-parting). It is ideal for factories, hospitals, airports, military bases, and other high security areas to be protected.MasterMatic S30 Automatic Sliding Door (Super Heavy Duty) Operator:
s30 SPECIFICATION:
TYPE MasterMatic S30 Automatic Sliding Door Operator (Super Heavy Duty) MODEL SINGLE-WINGED BI-PARTING DOOR WEIGHT 2000kg X1 (DOOR) 1500kg X2(DOOR) DOOR WIDTH 1000mm-6000mm 1000mm-6000mm INSTALL WAY SURFACE INSTALL SURFACE INSTALL MOTOR DC24V 250W BRUSHLESS DC MOTOR (PLANETARY GEAR) CONTROL STANDARD MICRO-CONTROL POWER CONSUMPTION 250W VOLTAGE AC100v-240V ENVIRONMENTAL TEMPERATURE ~20°C~+50°C VOLUME 65 DECIBEL(MAX.) STARTING SPEED 150mm/SEC. 120mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION ROLLER CHAIN 40-1R OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) PFC POWER EFFICIENCY 0.95(IN AC100V FULL LOAD) TRACTION FORCE WHEN POWER OFF THE DOOR CAN BE OPENED MANUALLY Special Features:
- PFC Device (Power Factor Correction)
- Catch-return safety system: During the door motion if there is a person or object blocking the travel line, the door will return.
- Wide range of AC Voltage input (AC100-240V)
- Power saving, quietest, versatile, resistant high heat and cold.
- Safety certificate: URS ISO 9001
- Excellent quality & high-performance
BROCHURE – MasterMatic S30 Automatic Sliding Door (Super Heavy Duty) OperatorMasterMatic S80/S81 Automatic Sliding Door (Super Heavy Duty) Operator:
s80/s81 SPECIFICATION:
TYPE MasterMatic S80/S81 Automatic Sliding Door Operator (Super Heavy Duty) MODEL SINGLE-WINGED BI-PARTING DOOR WEIGHT 5000kg X1 (DOOR) 4000kg X2(DOOR) DOOR WIDTH 1000mm-6000mm 1000mm-6000mm INSTALL WAY SURFACE INSTALL SURFACE INSTALL MOTOR DC24V 250W BRUSHLESS DC MOTOR (PLANETARY GEAR) CONTROL STANDARD MICRO-CONTROL POWER CONSUMPTION 250W VOLTAGE AC220V ENVIRONMENTAL TEMPERATURE ~20°C~+50°C VOLUME 65 DECIBEL(MAX.) STARTING SPEED 250mm/SEC. 230mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION ROLLER CHAIN 40-1R OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) MATERIAL OF HANGER STAINLESS 304 BEARING ROLLER BEARING SECOND SYSTEM NONE/INCLUDING BROCHURE – MasterMatic S80 Automatic Sliding Door (Super Heavy Duty) OperatorMasterMatic S160/S61 Automatic Sliding Door (Super Heavy Duty) Operator:
s160/S161 SPECIFICATION:
TYPE MasterMatic S160/S161 Automatic Sliding Door Operator (Super Heavy Duty) MODEL SINGLE-WINGED BI-PARTING DOOR WEIGHT 10,000kg X1 (DOOR) 8000kg X2(DOOR) DOOR WIDTH 1000mm-6000mm 1000mm-6000mm INSTALL WAY SURFACE INSTALL SURFACE INSTALL MOTOR DC320V 370W BRUSHLESS DC MOTOR (PLANETARY GEAR) CONTROL ELECTROMAGNETIC BEARING-MOUNTED CLUTCH POWER CONSUMPTION 370W VOLTAGE AC220V ENVIRONMENTAL TEMPERATURE ~20°C~+50°C VOLUME 65 DECIBEL(MAX.) STARTING SPEED 230mm/SEC. 200mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION ROLLER CHAIN 50-1R OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) MATERIAL OF HANGER STAINLESS 304 BEARING ROLLER BEARING SECOND SYSTEM NONE/INCLUDING BROCHURE – MasterMatic S160 Automatic Sliding Door (Super Heavy Duty) Operator -
TELESCOPIC SERIES
MasterMatic Telescopic series provide solutions for moving a range of doors that encompass two or four wings, whether the door is made up of 1+1 wings or 2+2 sliding wings. Both TH-W2 and AD-W2 telescopic models provide the ideal solution for the wider range of dimensions. It also provides an architectural touch to the building at stake. Like most MasterMatic models, the Telescopic series can be fitted with numerous accessories such as security and safety devices, as well as specific devices for locking and antipanic situations.
MasterMatic TH-W2 Automatic Sliding Door Operator (Telescopic) – SPECIFICATION:
TYPE MasterMatic TH-W2 Automatic Sliding Door Operator (Telescopic) MODEL TELESCOPIC 2-WINGED TELESCOPIC 4-WINGED DOOR WEIGHT 130kg X1 (DOOR) 90kg X2(DOOR) DOOR WIDTH 500mm-3000mm 500mm-3000mm INSTALL WAY SURFACE INSTALL SURFACE INSTALL MOTOR DC24V 75W BRUSHLESS DC MOTOR CONTROL STANDARD MICRO-CONTROL POWER CONSUMPTION 75W VOLTAGE AC100V-240V ENVIRONMENTAL TEMPERATURE ~20°C~+50°C VOLUME 60 DECIBEL(MAX.) STARTING SPEED 600mm/SEC. 550mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION RACK BELT S8M OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) PFC POWER EFFICIENCY 0.95(IN AC100V FULL LOAD) TRACTION FORCE 3KG Special Features:
- PFC Device (Power Factor Correction)
- Catch-return safety system: During the door motion if there is a person or object blocking the travel line, the door will return.
- Wide range of AC Voltage input (AC100-240V)
- Power saving, quietest, versatile, resistant high heat and cold.
- Safety certificate: URS ISO 9001
- Excellent quality & high-performance
MasterMatic AD-W2 Automatic Sliding Door Operator (Telescopic) – SPECIFICATION:
TYPE MasterMatic AD-W2 Automatic Sliding Door Operator (Telescopic) MODEL TELESCOPIC 2-WINGED TELESCOPIC 4-WINGED DOOR WEIGHT 130kg X1 (DOOR) 90kg X2(DOOR) DOOR WIDTH 500mm-3000mm 500mm-3000mm INSTALL WAY SURFACE INSTALL SURFACE INSTALL MOTOR DC24V 75W WORM GEAR MOTOR CONTROL USER-FRIENDLY MICRO-CONTROL POWER CONSUMPTION 75W VOLTAGE AC100V-240V ENVIRONMENTAL TEMPERATURE ~20°C~+50°C VOLUME 60 DECIBEL(MAX.) STARTING SPEED 650mm/SEC. 600mm/SEC. STARTING TIMES 0-20 SEC. (REGULABLE) TRANSMISSION IMPORTANT CONDITION RACK BELT S8M OPENING DOOR RANGE FULL/HALF-OPEN (REGULABLE) PFC POWER EFFICIENCY 0.95(IN AC100V FULL LOAD) TRACTION FORCE 3KG BROCHURE – MasterMatic TH-2 / AD-W2 Automatic Sliding Door (Telescopic) Operator -
Civic Series
The Civic series produces an exceptional fitting environment for home or inside a building. It is an enviable solution for elderly or for people who have deambulated difficulties. It can be used in the home, hospitals, nursing homes and so on. Civic brings the automated pedestrian door system to a wide public market that has been brewing interest for some time. Civic has been especially created to cater for such requirements. It optimises convenience, reliability and performance at reasonable prices. Civic moves the door at gentle speeds to avoid injury or risk of damage. It also comes either pre-assembled or in a assembly kit for professional installation. The basic model includes a push button control panel and an automatic closing speed adjusting device. See below for a sample application of a Civic automated pedestrian door.Specifications:
Operation: Light duty
Max Capacity: 40kg (1 door wing) – 60kg (2 door wings)
Sliding: same as REX
Speed: 0.4m/s during opening, 0.2m/s during closing (1 wing)
Motor: 24Vdc with encoder, reversible, without lock
Force: 30N
Electronic Control Board: Built in with microprocessor
Outputs: 24V – max. 0.15A
Controls: Low-voltage, with telephone-type plug in connectors
Opening: Pushbutton or radar, photocells, etc.
Closing: Pushbutton or timed -
-
Olly Series E – M Models
STEP INTO THE FUTURE
Face it – living in a time where your are surrounded by high technology should you have to open a door? Now that desire for a slice of the future has become your reality. ADS revolutionary Olly E and Olly M is State of the Art door automation technology.
These automatic door operating units are to be highly flexible and are unique, as they are designed with the private or domestic market in mind.Automatic Sliding Door System
For single doors of up to 40kg in weight and 1 metre wide.Low Cost:
- Easy installation
- Touch Sensitive Safety Return
- Reliable Performance
- Self Learning Cycle
- Electronic Security Locking
- Virtually Maintenance Free
- Options include Remote Control, Push Button, Hands Free. Almost unlimited applications. front door, Back door, Room dividers, Serving hatches, Office Door, Shop door, Laboratory, Factory Door. ADS has brought science fiction to fact.
-
Olly E
STEP INTO THE FUTURE
Firstly there is the Olly E which is to be designed for sliding doors or shutters and is also to be a belt driven system and can handle up to 100kgs at constant speed. This system is also to be able to activate existing sliding shutters and / or doors on existing tracks. Both these door systems are simple to install and offer very simple and low maintenance. The operation speed is 0.1 metre / second . This door or shutter operation system may also be activated by push button or by movement or infrared sensors. There is also the facility of possible connection in parallel of more than one actuator with centralized control allowing a maximum stroke of 3500mm.
Throughout belt driving, the small actuator Jolly E is able to activate a door with straight movement and total wing/s weight up to 100 kilos at constant speed. This system is also suited to activate, already existing doors and concealed doors, as it is very easy to install and guarantees very simple maintenance, if required. Olly E can be used in a varied range of activation requirements such as external shutters, windows, rolling doors, sliding panels, etc.
-
Olly M
Secondly, the Olly M automatic door operator is to be designed for sliding doors up to 40kg. in weight and is to be a belt driven system with a geared motor and an electronic microprocessor which allows smooth movement with acceleration and braking similar to a traditional automatic sliding door. Thus the speed may accelerate to 0.4 metre / second and decelerate to 0.2 metre / second at the end of the run. The drive unit may be concealed or externally mounted as desired and is relatively simple to fit, even to existing doors mounted on existing track. The operator may be activated either by pushbutton or by movement or infrared sensors.
Olly M is a geared motor, with reduced size, suited to activate, through belt driving, any type of door featuring a straight movement.
Thanks to its highly sophisticated technology (the electrical control is controlled by a microprocessor), a smooth movement of the door is obtained, with acceleration and braking similar to traditional automatic door. This system is ideal to activate internal sliding doors, both standard and concealed. Olly is a “UNIQUE” product on the market and can be considered a real step forward in the field of automatic door systems.
-
-
MasterMatic SW-2 Swing Door
Our versatile MasterMatic SW-2 Swing Door opener is capable of supporting heavy doors in all settings or external doors subjected to heavy wind-loads. It is suitable for both new and retrofit applications, converting any manual door into a fully automatic entrance. It is ideal for hospitals, schools, hotels, aged-care residencies which need quick and easy egress in case of an emergency.
Quick Specs:
- Dimensions: 120mm X 135mm X 600mm
- Opening Door Range: 120° (Max) / 90° (Default)
- Loading Weight: 250KG X 1000mm / 150KG x 1500mm
- Opening Speed: 2 to 5 seconds
- Closing Speed: Set at about 70% of full speed for opening or 4 to 8 secs adjustable
-
- MasterMatic SW-2 Swing Doors
-
- MasterMatic SW-2 Specification
-
Transit UE ⁄ 97 Series
There are two models within this series – the UE and the 97. Transit UE is a smaller compliment to the SuperTransit. The operation exerts thrusts in both ways to ensure a safe and reliable movement is made. The motor is kept under control at all times. The Transit UE would be an ideal model for hospitals, wards and so on.
The Transit 97 is a powerful and versatile option for operating various swing doors in heavy and intensive conditions. It can out perform well beyond the limit of other operators. The opening and closing stages are fully controlled by the electric motor, with an integrated microprocessor, for safe and reliable operation. It would be the ideal application for extreme weather conditions, such as winds, storms, etc.
Quick Specs:
- Dimensions: 116 X 127 X 560 or 116 X 127 X 800
- Maximum Range w⁄1000mm-long wing: 100 or 250 Kg
- Opening Speed: 3 to 5 secs or 2 to 5 secs
- Closing Speed: Set at about 70% of full speed for opening or 4 to 8 secs adjustable
-
SuperTransit Series
The SuperTransit is the big brother of the Transit series. It delivers more power, and also is larger in size. This model is suitable in almost all types of applications. It is made of sturdy construction and is very quick and easy to mount. SuperTransit is available in a fire proof version, featuring a special articulated arm.
Quick Specs:
- Dimensions: 116 X 127 X 800 or 116 X 127 X 560
- Maximum Range w⁄1000mm-long wing: 250 Kg
- Opening Speed: 3 to 5 secs
- Closing Speed: Set at about 70% of full speed for opening
-
Sprint Series
The Sprint series marks innovative design, compact and lightweight construction. It features a standard built in battery, an easily accessible on⁄off switch and a ‘push and go’ or ‘low energy’ operating mode. The ‘push and go’ feature is ideal for applications where senor type technology is either not suitable or not available. The swing is the perfect solution to your swing doors.
Quick Specs:
- Dimensions: 450 X 80 X 90
- Maximum Range w⁄1000mm-long wing: 100 Kg
- Opening Speed: 1.5 to 3 secs
- Closing Speed: Set at about 70% of full speed for opening
-
Wel
New, multi-functional, solid, adaptable and noisless.
Wel is the new automation for automatic swing doors. Its distinctive features make it an all-purpose product which can be used in different operational situations:- with motor opening and closing
- with motor opening and spring closing
- on escape routes
- on fire-proof doors
- low energy for the disabled
Wel is a solid, hard-wearing, heavy-duty and noisless automation which can be used also on doors with two synchronized wings (master-slave function). Its new design makes Wel stand out for its elegant and clean lines.
Wel complies with the strictest European regulations.Special functions:
- Low energy
- fireproof
- escape routes – it can be fitted on escape routes thanks to the type-testing in progress according to DIN V 18650 directive
- perfect movement synchronization, for two-wing automation, thanks to the serial connection between the automations(master-slave function)
-
AT88T
- Gear motor for sliding gates up to 4000 kg.
- Intensive use.
- The most powerful APRIMATIC gear motor.
- Maximum power and reliability for heavy-duty use.
- Customised key emergency unlocking system to release the gate in the event of a mains power failure and to protect against unwanted entry.
-
GR 200 ⁄ GR 450 ⁄ GR 600
GR 200
- Reversible and irreversible electro-mechanical actuators for wing gates.
- Max. length 2.5 m. and max. weight 250 Kg. Piston stroke 300 mm. Available with different voltages. Very silent. Operating in very diverse climatic conditions. Easy release in case of need.
GR 450
- Reversible and irreversible electro-mechanical actuators for wing gates.
- Max. length 4.0 m. and max. weight 250 Kg. Piston stroke 400 mm. Available with different voltages. Very silent. Operating in very diverse climatic conditions. Easy release in case of need.
GR 600
- Reversible and irreversible electro-mechanical actuators for wing gates.
- Max. length 5.0 m. and max. weight 250 Kg. Piston stroke 600 mm. Available with different voltages. Very silent. Operating in very diverse climatic conditions. Easy release in case of need.
-
EM 324
EM 324
- Non-reversible 24V DC.
- Electro-mechanical operator.
- For swing gates up to 3 metres.
- Residential use.
- Maximum safety guaranteed by low voltage.
- Service continuity guaranteed in case of power failure by an optional emergency battery unit.
- Innovative design.
-
ZT 44 RF ⁄ ZT 40 RF
Double valve flow adjustment device for regulating gate opening and closing speeds. Compensates for the unbalanced loads created by wind and out of plumb installation of very light and medium heavy gates.
-
-
B 310 / B 410 – Telescopic arm
The open line electromechanical actuators range is designed for domestic applications. The choice of the actuators is bound up with the gate and pillars features. Sturdy and reliable, they are suitable for existing or new gates (1 or 2 leafs). Good quality leafs are required (rigid), the gate must operate smoothly when it’s moved manually.
Features:
- B 310 and B 410 are electro-mechanical self-locking actuators with worm drives, suitable for the automation of side-hung gates or doors with either single or double wings.
- They are available in the following versions:
- B 310 electro-mechanical actuator, with a 310mm, travel, self-locking, for use on the right-hand gate wing (seen from within), for wings not exceeding 3m in length.
- R 310 electro-mechanical actuator, with a 310mm, travel, unlocking version, for use on the left-hand gate wing (seen from within), for wings not exceeding 3m in length.
- B 410 electro-mechanical actuator, with a 410mm travel, self-locking, for use on the right-hand gate wing (seen from within), for wings not exceeding 4m in length.
- R 410 electro-mechanical actuator, with a 410mm, travel, unlocking, for use on the left-hand gate wing (seen from within), for wings not exceeding 4m in length.
Actuators B 310 & B 410
A: Electromechanical Actuators
B: Electronic control unit
C: Pluggable radio receiver
D: Radio remote control
E: Antenna
F: Safety photocells
G: Warning light
H: Radio digicode
I: Digicode protection caseFor unlocking versions
J: Automatic stopper
K: Electrical lock -
ADS Spin 4
This automatic boom gate barrier consists of an aluminium beam, powder coated white, and equipped with red reflector tape, a steel casting with cataphoresis treatment and painted with polyester powder coating on the housing and containing an electromechanical, non-reversible motor and electronic logic control. The unit is equipped with anti-crash safety devices and manual release in the event of a power failure or faulty operation.Specifications:
- The helical, compression springs, easy to adjust, guarantee a smooth movement of the beam both at opening and closing.
- In case of power blackout, the emergency release is provided by turning a knob on the motor unit: it allows the manual operation of the beam and its stopping at the desired position
-
Aprimatic Range
-
-
AREA
- Electro-mechanical barrier.
- 230 V AC and up to 4.5 m.
- Non-intensive use.
- The streamlined design gives the product an attractive appearance.
- High-quality performance and maximum safety.
- Electronic anti-crush safety system and emergency release with key which can be activated from outside.
-
AT 166
- Electro-mechanical barrier.
- 230 V AC and up to 4 m.
- Intensive and continuous use.
- The perfect solution where speed and intensive use are specified.
- Manual release lever system for operation in the event of a power failure.
-
ADS MasterMatic ‘P’ Type Automatic Swing Gate Barrier
The ADS Mastermatic Pty Ltd “P” Type automatic swing gate barrier is more commonly known as the ‘P Barrier’ and is designed as an access control gate for crowded areas where control of pedestrian or wheel chair movement is desired. The Barrier is neatly designed with a swing arm which allows one pedestrian or one wheelchair through at a time. It is 1025mm high with a steel body 200mm x 200mm and all steel is powdercoated in a colour to suit the customer.
The unit comes complete with a mounting flange plate on the base so the installation is quick and easy. The control of the unit is complete with a logic control panel, photo electric cells for safety and a manual key to unlock the barrier in an emergency. The ‘P Barrier’ is easily adaptable and will interface with the various type of entry systems.
-
-
BR615 ⁄ GR100 – Articulated arm
BR 615BR 615 is self-locking motor which does not require an electrical lock. The disengagement system is easily accessible without removing the cover. The BR 615 includes built-in opening and closing limit swithces that avoid gate efforts against the ground stoppers; which typically designed for light gate.
GR100Electro electro-reducers with articulated arms for wing gates. Non-reversing electro-mechanical actuators with articulated arm for swinging gates (left or right) – max. Length 2.5 m. and max. Weight 250 Kg. Available with 220 or 12 Volts. Very silent. Operating in very diverse climatic conditions. Easy release. Montable on narrow pillars (min.170 mm).
-
-
EL 2200 Access Controller
Features:
- Large Memory : Stores up to 12,800 user cards and 4,000 transactions
- Stand-alone or network operation via PC
- Modem Support : May be programmed to initiate dial up sequence to a remote PC
- 22 types of events are distinguished, and can be logged selectively
- 6 open collector outputs can be toggled or pulsed by timer or any of the 22 events
- PIN only, Card only, and Card Plus PIN Operation Modes
- Lock-out of a card when its PIN is wrongly entered repeatedly
- Setting of phone number and dialing commands for direct linking to modem
-
Full Height
- Offers constant protection of premisses
- Restricts access to authorised persons
- No intimidation when linked to access control
- Single and double configurations
- Compatible with all known A.C. Systems
- Hot dip galvanised for maximum corrosion protection
- Stainless steel rotors
- Silent trouble free operation
- Bush in rubber block damping
- Passage frequency +15 persons per minute
- Painted to colours of your choice
-
GF Series Multi-Unit Entry Security
Features:
- Fully modular panel construction. Max. 100 call panel(direct-select)
- Vandal-resistant entrance station panels
- Common Audio Bus lines can be run in multiple risers from distribution point
- Max. 50 Apartment stations and 3 Entrance stations per Bus line
- One or two handset stations per apartment
- Door Release and external entrance light control at apartment
- Call tone mute (Switchable on and off)
- Optional doorbell to ring one apartment station(with a different distinguishable tone)
- User-optional function can be added, using SERVICE button
-
JA Series Colour Audio Video Entry Intercom
Features:
- Pan⁄Tilt door stations
- 2 video door stations and up to three internal stations
- Clear crisp colour inage with 100mm TFT colour LCD
- Handsfree communications
- Model JA2MECD fitted with digital picture memory
- All Call allows internal communications
- Choice of 2 door stations including semi flush and surface mount models
- Compatible with JB door stations
- White LED illumination for low light viewing
- NTSC composite video output
- Two inputs for CCTV Camera (requires a JAWAZ for each camera)
-
Microlatch Fingerprint Wireless Access Control
Features:
- Typical 30 Templates Storage On-board
- System Status & User Configuration via 3 Colour LEDs
- 2 Master Administrators
- Duress Alarm Finger Output
- Individual Add/Delete Users with Simple User Interface
- Always On. No Latancy for Waking Up from Quiescent State
- Tamper Output
- Water Resistant to IP53
-
MK Series Black & White Audio Video Entry Intercom
Features:
- One door to 3 rooms
- Modern styling
- Communication between monitors
- Vandal resistant door stations available
- Simple wiring
- Wide angle lens on door station
- Composite video output available(NTSC). (MKCABLE required)
- MK-S1GD kit available containing MK-DH door station, one MK-1GD monitor and power supply
-
Prox & Pin Stand-alone Controller
An Indoor/Outdoor PIN Mullion 2×6 Controller with Red backlit keys. for applications with frequent night time traffic and dark difficult visibility, in residential, commercial, and indoor Industrial applications.
Features:
- 500 PIN users
- (2x) 5A Output Relays
- 2 Inputs
- 3 security modes and 3 user levels
- Weather-resistant housing
- Large RED ILLUMINATED KEYS
- 2 Bi-Color LED Menu
- Fully Potted
- Rated IP65
- Optical Back Tamper
- 12-24 VAC or 16-24 VDC Input
- 10-Wire Interface (10 Colors / Label on Back Of Unit)
-
Service Park
Automatic arm for protecting your parking area. Very easy to install. It works with batteries. It doesn’t require electrical cables. Product made of steel, resistant to crushing. Foldable by manual pressure in case of lack of power in the battery. Built-in power unit and radio receiver.
-
-
Standalone Single Door Access Control Systems
Indoor PIN Controller 500 PIN users, case tamper, requires 12-16VDC regulated power input, 3.5 Amp Form C electronic strike relay, 1 Amp Open Collector PGM, 3 security levels and 3 user levels, 4-wire terminal block interface.
Features:
- Standalone Operation
- 2 System Codes
- 500 Individual Users
- Three Modes of Operation
- Bell and Chime
- Tamper
- Built-in Electronic Relays
- Exchangeable Cabinet Cover
- User Friendly
-
Waist Height
Standard features:
- 15 people per minute throughput
- 100% duty cycle rating on mechanism and solenoids
- Easily accessible controls housed in plug in module
- Stainless steel spindles with steel frame powder coated grey silver/vein
- On power failure the following functions are available:
- Locked entry -free exit
- Locked exit – free entry
- Locked in both directions
- Free wheel in both directions
- 2 years unconditional guarantee on mechanism
-
AT80
- Gear motor for sliding gates.
- Intensive use up to 800 Kg, residential use up to 1200 kg.
- AT 80 is silent and highly-functional, whatever the temperature: from -20° to +70°C, thanks to the oil bath gear motor, with irreversible reduction unit eliminating the need for additional locking systems.
- Auto-reverse safety is ensured by an adjustable oil bath clutch which reduces the trust force of the gate as it moves if it meets an obstacle.
-
Slider
Slider
- Gear motor for sliding gates
- Residential use up to 300 Kg.
- Reduced noise level and maxium function for residential use.
- It is a silent and highly-functional gear motor, ideal for residential applications.
- Maximum safety thanks to the electronic control device built-into the gear motor with electronic torque adjustment incorporated.
- Additional board can be connected as an optional for auto-reverse system in the event of obstacles.
-
GR 6
GR 6 RANGE– Irreversible electric gear motors, for opening domestic gates weighing up to 600 Kg, with various current supply possibilities; very silent, operating in very diverse climatic conditions. Available with or without incorporated programmer. Upper cover available in various colours.
-
-
CL 610 / 1010
This is so called the ‘classic line&rsq of products. The CL 610 and 1010 is suggested for domestic and small collective applications. The motors dimension allows physical applications to take place in small or reduced areas. It is suggested that a good quality gate be used, one that is rigid and operates smoothly in mechanical mode.
Features:
- Reduction gear operators with magnetic limit switches and with⁄without built in electronic control unit
- Slowing down system on opening and closing operations
- CL 610 400Kg max gate weight
- CL 610 40 Cycles per day
- CL 1010 800Kg max gate weight
- CL 1010 – Up to 250 cycles⁄day without built in electronic control unit
- Manual disengage in case of emergency
- Accessories can be added
CL 610 and 1010
A Reduction gear motor
B Built in electronic control unit
C Pluggable radio receiver
D Radio remote control
E Radio antenna
F Rack
G Safety photocells
H Key switch
I Warning light -
CL 1510 ⁄ 2000
CL 1510 ⁄ 2000
If you are looking for a larger solution to your automatic gate opening problems, then the CL 1510 and CL 2000 could be the right solution for you. Designed to be used for industrial applications, the CL 1510 and 2000 can operate up to 450 cycles ⁄ day. It can be used on existing or new gates, with ease and reliability. If you would like that extra bit of power and operating ease, the CL 1510 and 2000 models are for you. -
